Velia 10.9W230VAC - 10.9W

Velia 10.9W
Item no.: 31111012-m
EAN:
Choose colour
Choose kelvin
Amount
Buy
Copy EAN number
  • Product information
  • Download
  • Approved for installation directly in insulation and flammable materials
  • High colour rendering index (CRI)
  • High lumen output
  • Glare free
  • Flicker free
  • Mounting with springs
  • Comes with removable driver, which makes it easy to connect the downlight, for example after painting of the ceiling
  • Quick and easy mounting
  • Screwless terminal block in the connector box
  • Ceiling thickness for mounting is up to 26 mm

Technical data for Velia 10.9W

Voltage 220-240VAC 50 Hz
System effect 10.9W
Light source CREE LED
Colour rendering CRI>95
Expected lifespan (installed directly in insulation)
30,000 hours L70 B50
Expected lifespan
50,000 hours L90 B10
100,000 hours L70 B50
Dimmable Yes, trailing edge
Flicker free Yes, according to the new Ecodesign / ErP directive
SVM <0,4 Yes
PstLM <1 Yes
SDCM <3
Beam angle 38°

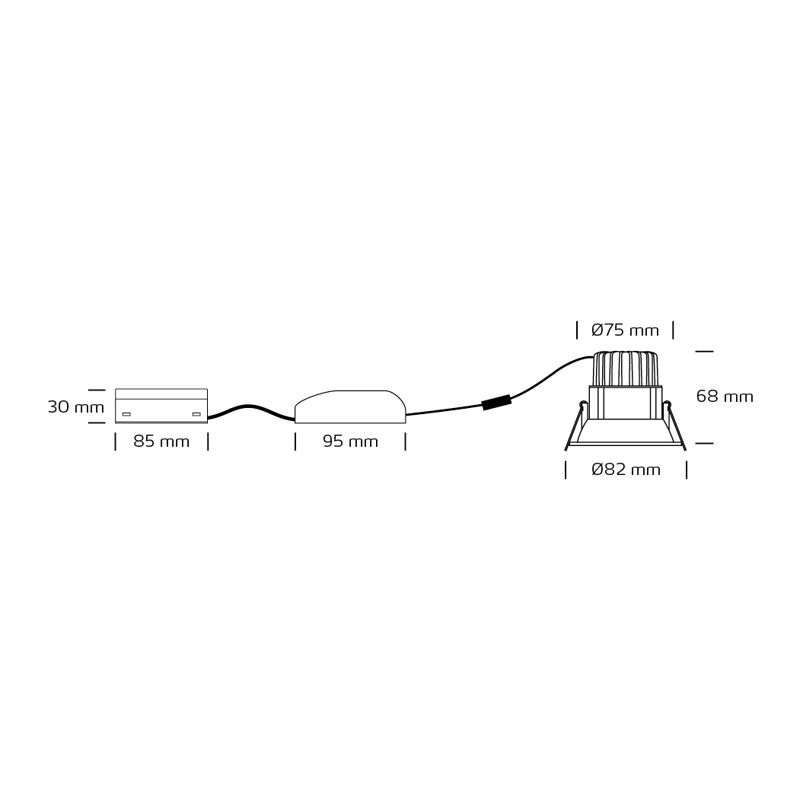

Cut out Ø75 mm
Installation height 68 mm
Exterior dimension Ø82 mm
Dimension driver L: 95 mm, W: 45 mm, H: 30 mm
Dimension connector box L: 85 mm, W: 55 mm, H: 30 mm
Possibility of through wiring Yes, 2 x 3G1.5
IP-rating IP44 (is intended for installation in areas 1 and 2)
Insulation class Class II
Material Plastic, aluminium, glass
Environment Indoors
Warranty 5 year
Approvals CE
