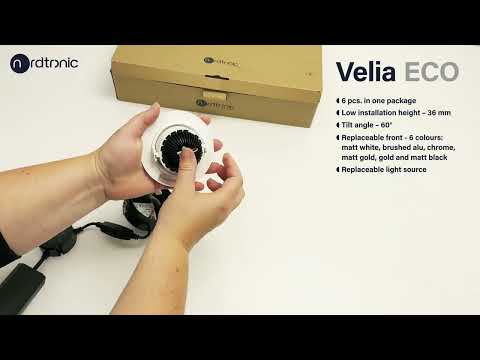

Velia ECO200-240VAC - 7W - 2700K / 3000K / 4000K CCT switch

Item no.: 31143018

EAN: 5704629005662

Amount

Buy

Copy EAN number 5704629005662

• Product information
• Download

• Produced from a minimum of 90% recycled materials
• Approved for installation directly in insulation and flammable materials
• Replaceable light source
• High lumen output - up to 500lm
• Glare free - UGR<19
• Flicker free according to the new Ecodesign / ErP directiv
• 3 step CCT switch 2700K / 3000K / 4000K
• Quick and easy mounting with springs
• Screwless terminal block in the connector box
• Ceiling thickness for mounting is up to 30 mm
• 6 pcs. in one package
• Replaceable front - 6 colours: matt white, brushed alu, chrome, matt gold, gold and matt black

Product Information Sheet

Manual

Dialux files

Technical data for Velia ECO

Voltage	200-240 VAC 50/60 Hz
System effect	7W
Light source	5.8W LED, item no. 98141758
Colour temperature	2700 / 3000 / 4000 Kelvin CCT switch
Light intensity	450 / 475 / 500 Lumen
Colour rendering	CRI>90
Glare	UGR<19
Expected lifespan	50,000 hours
Dimmable, how	Yes, leading or trailing edge
Flicker free	Yes, according to the new Ecodesign / ErP directive
SVM <0.4	Yes
PstLM <1	Yes
SDCM	<6
Beam angle	40°
Cut out dimension	Ø73-83 mm
Installation height	36 mm
Exterior dimension	Ø95 mm
Dimension driver	Ø54 mm
Dimension connector box	L: 78 mm, W: 42 mm, H: 26 mm
Tilt angle	60°
Leakage current	≤0.6mA
Possibility of through wiring	Yes, 2 x 3G1.5 mm2
Operating temperature	-20° - +45°
IP rating, front / back	IP54 / IP20
Insulation class	Class II
Material	Aluminium, plastic
Environment	Indoor
Warranty	5 years
Approvals	CE

•
